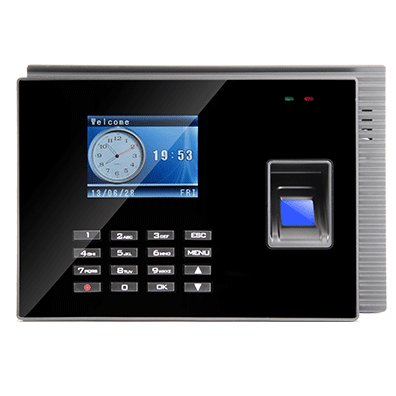

RF - 90

This device can work together with the network and professional software. When the device is connected to network and software, authorized users can make adjustments whenever they want. It will be more convenient for administrative work.

With advanced firmware, there is an enhancement of speed and accuracy. The verification speed has increased and the time is limited within 1 second. In addition, it also improved the accuracy of Fingerprint recognition.

fingerprint time and attendance rf-90

3000 fingerprint templates

TCP / IP Connectivity


200,000 record capacity

  • Special algorithm with faster speed and high steady quality
  • High USB interface with 10 times speed than normal usb
  • With international 32 bit DSP CPU
  • High resolution LCD show employee's name and finger image
  • 3000/5000 fingerprints suits different enterprise and company
  • High speed tcp/ip communication make data transfer steady
  • USB pen driver download or upload the reports in Excel or TXT file
  • Provide free software and free sdk

Black, Gold, Silver


2.8" TFT LCD Colour Screen


English, Simplified Chinese, Traditional Chinese, Thai, Viet, Spanish (and more)

Verification Modes

EM / Mifare, Fingerprint, PIN

Fingerprint Capacity


Log Capacity


Identification Speed

≤ 1 sec


Optional WiFi, RS485, TCP/IP, USB Drive, Wiegand IN & OUT (26 & 34)

Power Supply

DC 5V, DC 9V

Operating Temperature

20°C – 60°C


187 x 131 x 41.5mm
